100% Virgin PVC Core Sheet 0.1-0.8mm Thickness with Matt Surface for Plastic Card Lamination

Product Categories
Changzhou Zhonglu International Trade Co., Ltd
Contact Now

100% Virgin PVC Core Sheet 0.1-0.8mm Thickness with Matt Surface for Plastic Card Lamination

Brand Name : ZL

Model Number : ZL-PVC core-1

Place of Origin : China

MOQ : 1000KGS

Price : Negotiable

Payment Terms : L/C,D/P,T/T,Western Union,MoneyGram

Supply Ability : 500 tons per month

Delivery Time : 10-15 working days

Packaging Details : Plastic film and wood pallet

Product : White PVC core sheet

Material : PVC

Color : White or colored

Thickness : 100-860micron

Size : As client's requirements

Application : For producing the smart cards and other plastic cards

Vicat : 78 degree

Dynes : 38

Printing : Both Offset printing and silk screen printing

Surface : Matt/Matt

Contact Now

White / Colored PVC Core Sheet 0.2mm For Plastic Cards Lamination
Product Overview

Our white PVC core sheet is manufactured from 100% virgin PVC resin, delivering exceptional whiteness, smooth surface finish, and superior bonding strength. This premium core material is specifically designed for multi-layer lamination processes to produce high-quality plastic cards.

Our PVC core sheets are engineered for plastic card production applications including ID cards, access control cards, membership cards, gift cards, and various other card types.

Key Features
  • Material: 100% Virgin White PVC
  • Size Options: Standard sheets (310mm × 480mm) and customizable dimensions available
  • Thickness Range: 0.10mm - 0.80mm (custom thickness upon request)
  • Surface Finish: Matt, dust-free, and printable
  • Compatibility: Suitable for offset, screen, and digital printing
  • Applications: Used as the middle layer in laminated plastic cards (PVC card core)
Product Advantages
  • High bonding strength with overlay films
  • Excellent thermal and dimensional stability during lamination
  • Consistent whiteness and uniform thickness
  • Free from impurities, ensuring sharp and vivid print results
Applications
  • ID cards
  • Bank cards
  • RFID smart cards
  • Transportation cards
  • Gift cards and more
Selection Considerations

When selecting PVC core sheets for PVC card production, several factors should be considered:

  • Choose core sheets that provide excellent printability for high-quality graphics, text, and design elements
  • Consider chemical resistance as cards may contact substances like solvents or cleaning agents
  • Select appropriate thickness based on intended use - thicker sheets offer durability, thinner ones provide flexibility
  • Ensure proper balance between rigidity and flexibility to withstand bending without breaking
Technical Specifications
Serial No. Item Unit Standard
1 Width mm As your requirements
2 Length mm As your requirements
3 Thickness mm 0.1-0.8
4 Surface Roughness Ra (4#) μm 0.7-1.8
5 Surface Roughness Rz (5#) μm 4-12
6 Tensile Strength MD MPa ≥45
7 Tensile Strength CD MPa ≥43
8 Heat Shrinkage MD % ≥-6.0(140℃±2℃/10min)
9 Heat Shrinkage CD % ≤+2.2(140℃±2℃/10min)
10 Surface -- Mate/Mate
11 Surface Tension (4#) Dynes/cm ≥38
12 Surface Tension (5#) Dynes/cm ≥38
13 Density g/cm³ 1.42±0.05
14 Vicat Softening Point ℃ 78±2(5KG)

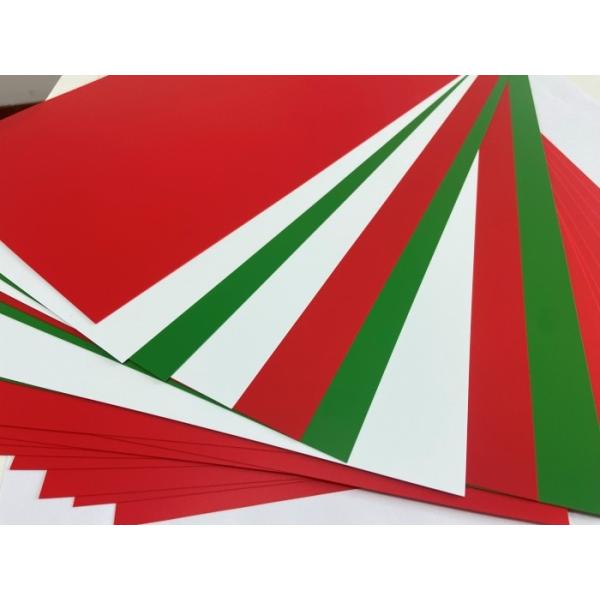

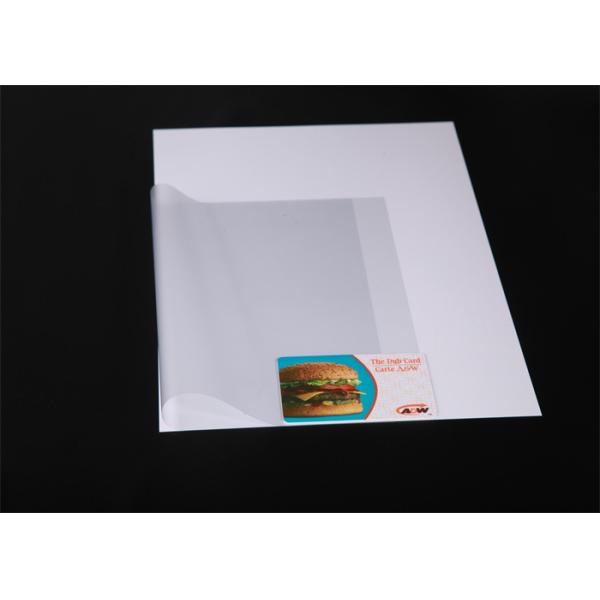

Product Images
100% Virgin PVC Core Sheet 0.1-0.8mm Thickness with Matt Surface for Plastic Card Lamination 100% Virgin PVC Core Sheet 0.1-0.8mm Thickness with Matt Surface for Plastic Card Lamination 100% Virgin PVC Core Sheet 0.1-0.8mm Thickness with Matt Surface for Plastic Card Lamination
Frequently Asked Questions
Q1. Can I have a sample order?
A: Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: 1-5 days for sample preparation, 10-15 working days for mass production.
Q3. Do you have any MOQ limit?
A: Samples are available. Order MOQ is 1000KGS.
Q4. How do you ship the goods and how long does it take to arrive?
A: Ship by DHL, UPS, FedEx or TNT. It takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order?
A:
  1. Let us know your requirements or application
  2. We quote according to your requirements or our suggestions
  3. Customer confirms the samples and places deposit for formal order
  4. We arrange the production
Q6: Do you offer guarantee for the products?
A: Yes, we offer 5 years warranty for our products.
Q7: How to deal with the faulty?
A:
  1. Our products are produced under strict quality control with a defective rate less than 0.1%
  2. During the guarantee period, we will send replacement goods for any faults and work together to find the best solution
